HEPA, ULPA Filter

[Clap filter class] Crane ventilation filter classified after replacing the C.Filter HANBench Dr.Filter HQos

알파라인랩비즈니스 2023. 4. 12. 19:38



Alpha Line Lab Business, a laboratory safety integrated management company.

The work I'm going to show you this time is replacing

the domestic clean bench filter that Acunos is using.

​Alpha Line Lab Business has a long-standing know-how

and technology for filter replacement, so not only simple replacement

​From actual measurement to fabrication and replacement of

filters to complete the entire process of replacing the clean bench filter at once

​It's a systematic one-stop care.

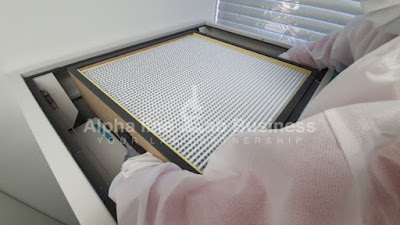

Replacement of the Core HEPA Filter (HEPA Filter) filter

to maintain cleanliness of the clean bench.

​The filter that I was using was very contaminated

​The air circulation structure of the clean bench is that

the air introduced through the pre-filter is purified by the HEPA filter

​After passing through the experiment, it is discharged in the direction of the operator.

​If contaminants accumulate in the filter, not only

contamination of the experimental sample but also infection of the worker

​Periodic clean bench filter replacement is recommended as it may cause situations.

​※ The maximum life of the HEPA filter is about two years, but depending on the

experiment, frequency of use, and environmental factors

It may vary, so it is recommended to replace it once

a year (approximately 3000h used).






To maintain the cleanliness of the clean bench, before the main filter, HEPA filter

​The scene of a pre-filter replacement used as the primary processing filter.

​The pre-filter is in contact with the outside and acts as

a pretreatment of the main filter, and dust, floating matter, etc. in the atmosphere

​Remove 10 to 30μm particles that harm the human body.

​The pre-filter filters the incoming air first, so the pollution

rate is faster than the main filter.

​It is recommended to replace the pre-filter once every 6 months to 1 year

​If you continue to use prefilters that have passed the

replacement period, it will affect the circulation of air

​Periodic replacement checks are recommended as

they may cause damage to the blower motor or even contamination of the main filter.








In the Alpha Line Lab business, a differentiated signature, Simple Validation

​It is free of charge to all users who have requested the

replacement of the clean bench filter.

​Simple validation is an item corresponding to IQ and

OQ for the purpose of managing its own equipment

​We will verify and measure the installation environment,

noise, illumination, horizontal, airflow, wind speed, and

particles and write the results as a report.

​※ According to the KDCA's guidelines for verifying bio-safety

research facilities of Grade 3 and 4, bio-safety research facilities

and safety equipment are

Management such as maintenance shall be performed continuously

and re-verification shall be performed periodically.

​Periodic re-verification is recommended once for one to two years.It says that.

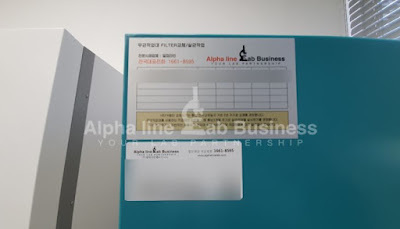

Alpha Line Lab Business will attach a history sticker

after replacing the clean bench filter.

​We will record your management history, so anyone can

easily check your management history even if the

person in charge of equipment management changes.

​We also give you a unique customer number, so we will help you manage it later.

​All fieldwork for the Alpha Line Lab business is

accompanied by a professional, experienced Field Manager

​Follow the safety guide manual that controls the entire operation.

As a laboratory safety integrated management company

with 29 years of experience, with many years of know-how and technology

​We always provide the best solution for you.





Tell : 1661-8595

E-Mail : alphalinelab@gmail.com
